    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount
    Active Hose Reel & Wall Mount

    Active

    Active Hose Reel & Wall Mount

    $549.90$0.00

    You may also like

    Customer Reviews

    Be the first to write a review
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

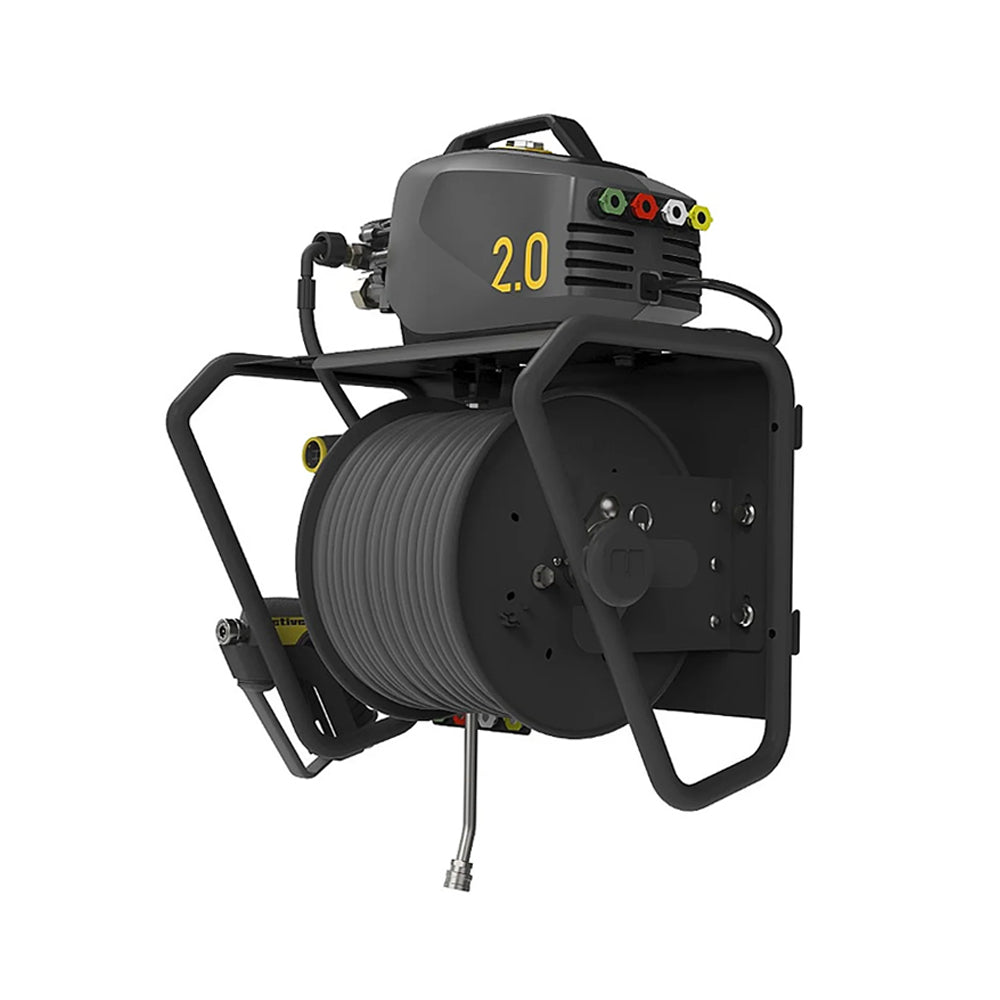

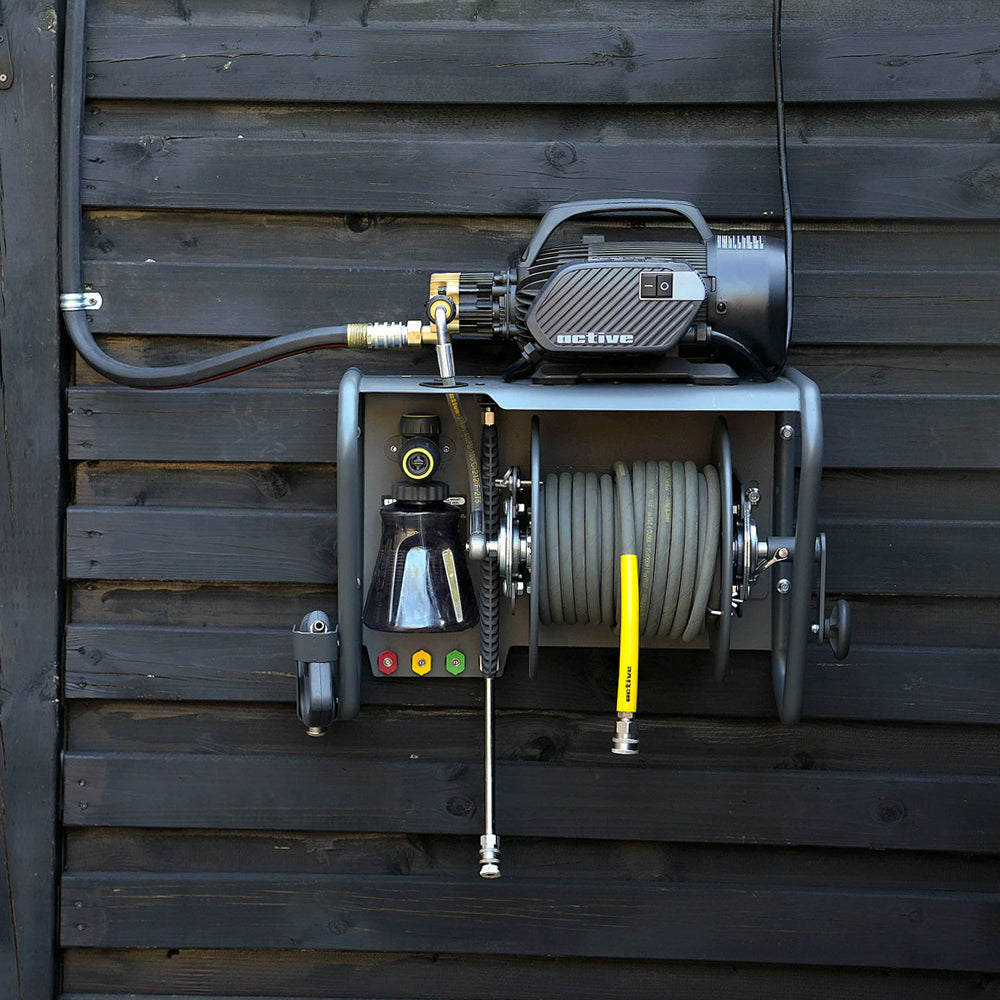

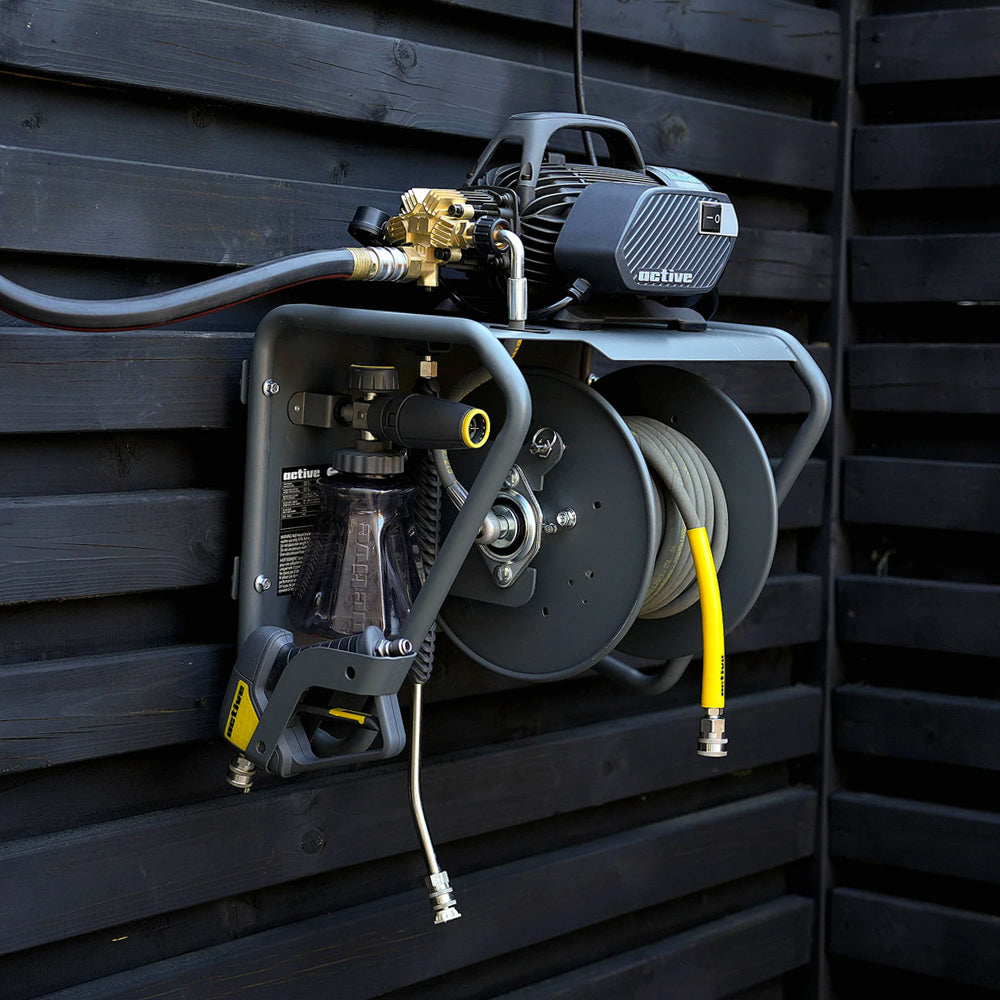

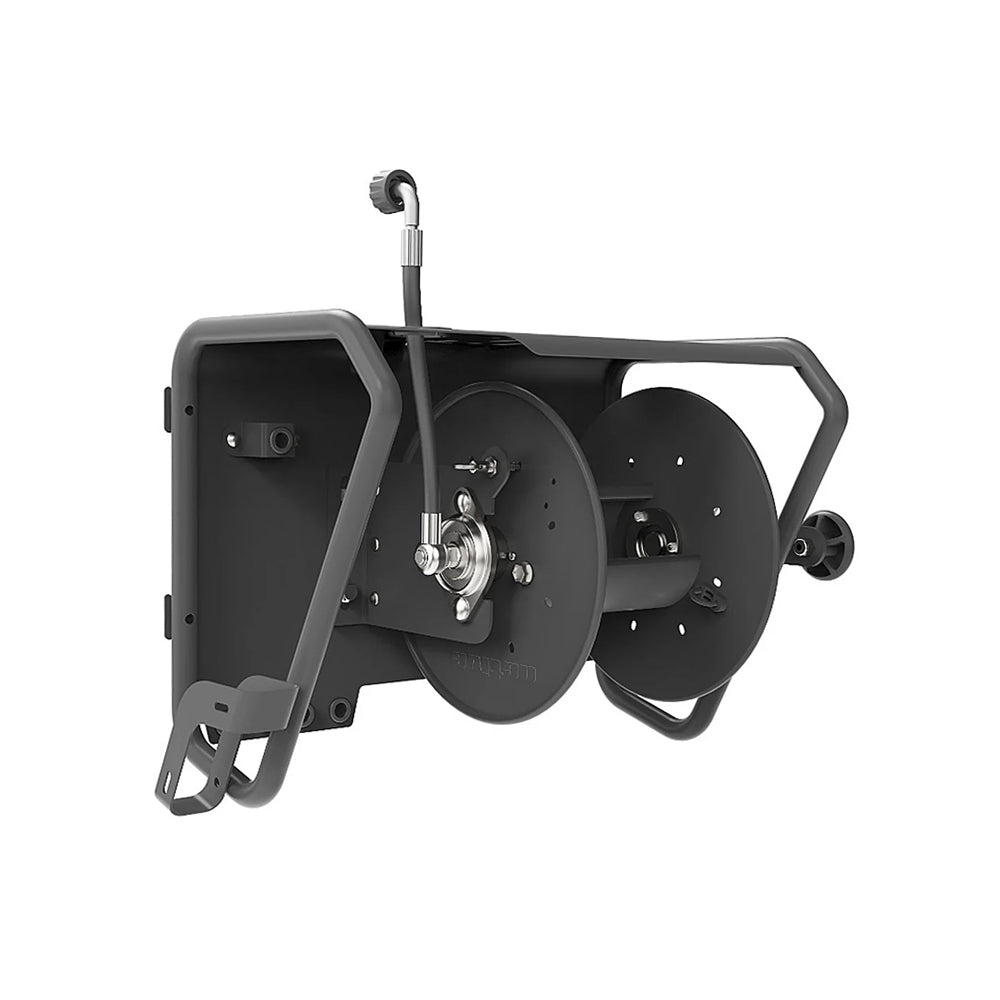

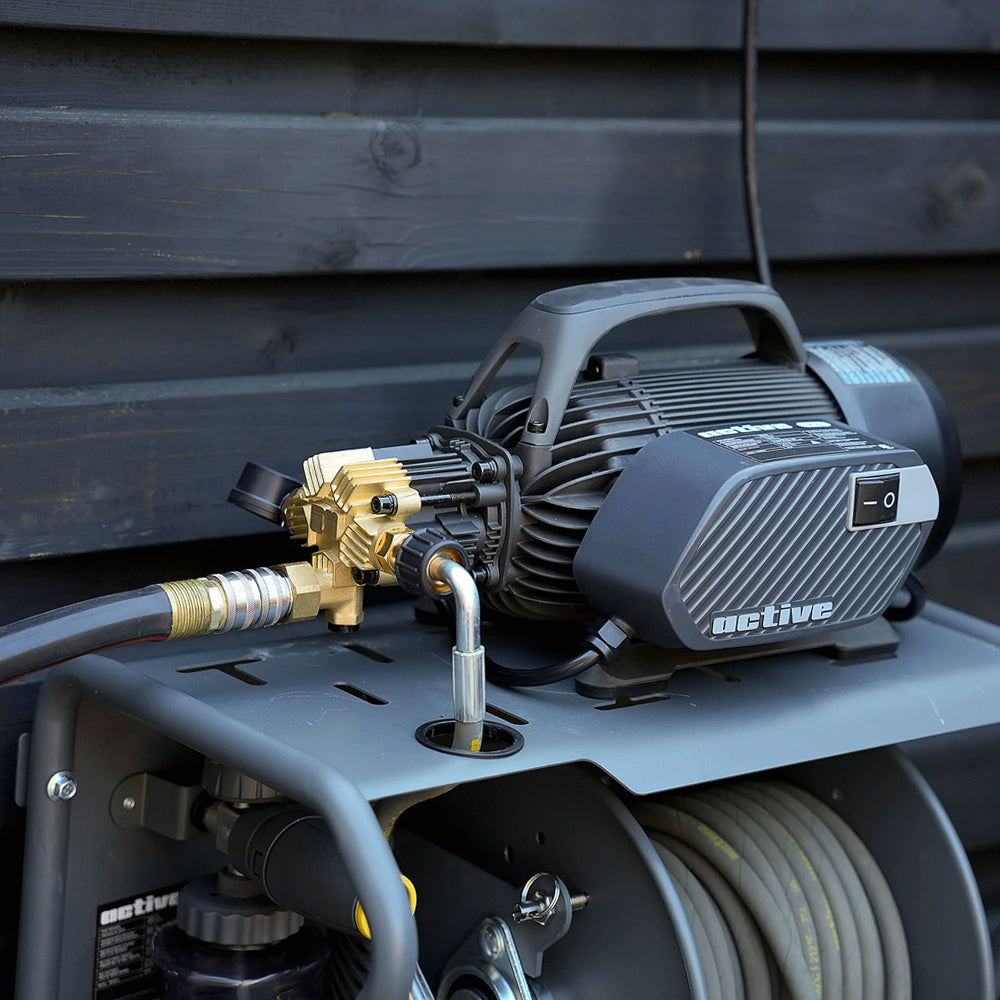

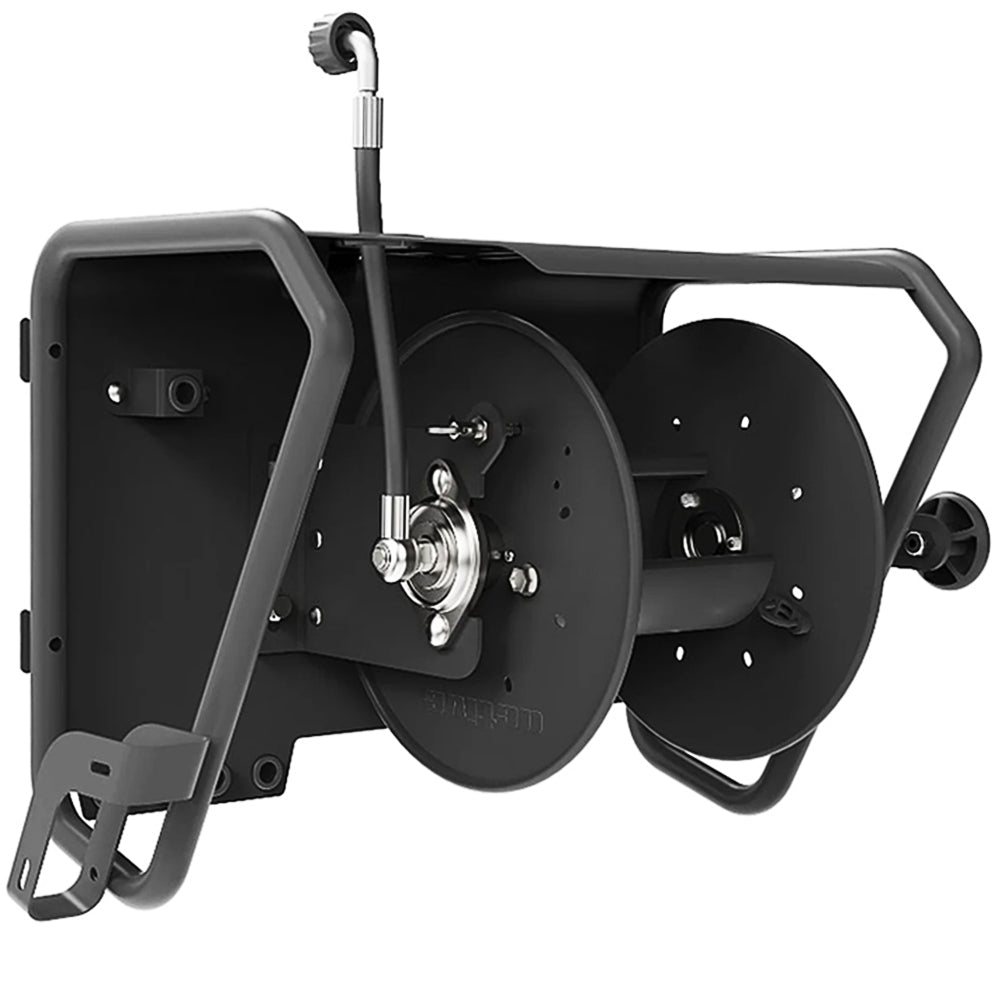

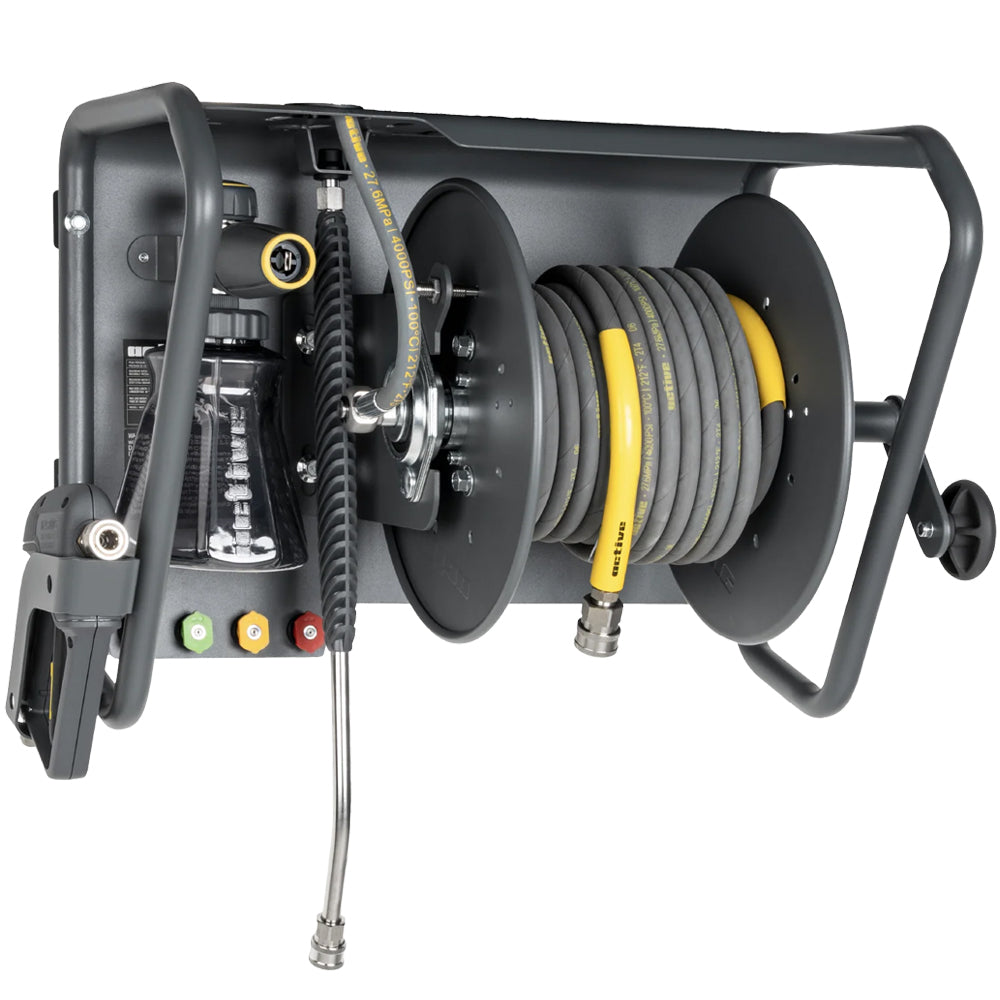

    Active Hose Reel & Wall Mount – Heavy-Duty Pressure Washer System

    The Active Hose Reel & Wall Mount is a premium-grade storage solution designed to complement your pressure washing setup. Built for performance and durability, this heavy-duty hose reel keeps your workspace clean and organised while protecting your hose from wear, kinks, and damage.

    Engineered for use with Active pressure washers and accessories, the reel is compatible with up to 30m of 3/8' and 45m of 5/16' of high-pressure hose. The smooth rewind function, integrated handle, and wall-mount bracket make setup easy while allowing quick deployment and tidy storage between uses. Crafted from corrosion-resistant materials, it’s built to stand up to frequent use and Australia's harsh outdoor conditions.

    Dedicated slots for pressure washer gun, foam cannon, lance and 4 nozzles. A 16” backing plate for safe mounting on the wall and a 5/16” diameter jumper hose with an M22-14mm connector for install with the pressure washer.

    The solution aims to be an integral accessory to the car wash experience in your garage, which ties in the Active pressure washer range to the active accessory bundle and completes the set of products for an integrated wash experience.

    Features

    • Wall-Mountable: Securely installs to most vertical surfaces for stable and accessible hose storage.
    • Smooth Operation: Features a fluid rewind system with comfortable hand crank for easy winding and unwinding.
    • Durable Construction: Made with corrosion-resistant materials to withstand outdoor use and frequent pressure washing.
    • Universal Fit: Designed to accommodate up to 30m of 3/8' and 45m of 5/16' of high-pressure hose, compatible with Active Pressure Washers and other systems.
    • Tangle-Free Management: Keeps your hose off the ground, preventing twists, kinks, and unnecessary damage.
    • Space-Saving Design: Compact and functional, ideal for tidy storage in tight workspaces or garages.

    Complete your pressure washing setup with the Active Hose Reel & Wall Mount—a smart, durable upgrade that adds professionalism and order to your detailing environment.

    Specifications

    Hose Reel

    • Inlet fitting: 3/8” QC female coupler
    • Outlet fitting: M22x14mm
    • Extension hose pre-installed
    • Reel rotation lock: release lock pin before turning the reel
    • Hand crank: customer need install hand crank and lock by pin
    • Hose clamp: customer needs to make adjustment to secure hose
    • Stainless steel (304) reel valve

    Metal Frame

    • Hose reel is pre-installed on frame
    • Customer installation is required for wall mount mode
    • Customer installation required for gun holder and fasten by screw
    • Customer adjustment is required for hose clip

    Hardware

    • 4pcs 6x30 mm screws to fasten mounting plate on the wall
    • 4pcs M8x 20mm bolts to secure wall mount to mounting plate
    • 2pcs M5x14 bolt to secure gun holder on frame

    Accessories

    • Hand crank with lock pin
    • Mounting plate
    • Gun holder
    • Hardware kit
    • Jumper / lead hose to pressure washer (M22 x 14mm - female)

    Hose reel Measurements

    • Outer disc diameter: 300 mm
    • Inner barrel diameter: 120 mm
    • Reel width: 200 mm
    • Max. accommodate hose: 5/16” pressure hose, 100 ft

    Metal Cage Measurements

    • Width * Depth * Height (mm): 525 x 350 x 405
    • Mounting plate bolt holes layout: 16 inches x 5.6 inches x Φ8.0mm
    • Max loading capacity: 40kg
    FAQ

    What additional equipment do I need to use the Active wall mount?

    This kit has been built for optimised use with the Active 2.0 and 2.3 pressure washer and accessories. But it can be used to store any pressure washer with M22-14mm outlets. If you wish to use an M22-15mm pressure washer, you will need to source a separate jumper hose. Furthermore, any accessory terminating in a ¼” male plug (foam cannon, lance and nozzle can be used to store in the accessory mounts.

    Can this kit be used with non Active branded pressure washers?

    Although the kit is optimised for use with the Active 2.0 and 2.3, you can directly use this kit with any pressure washer in the market. The jumper hose provided terminates in an M22-14mm fitting. If you wish to use with an M22-15mm pressure washer, you will need to purchase a separate M22-15 jumper hose.

    Can the Active wall mount and hose reel be used with the Active VE52/
    VE56?

    Yes, it can be used, but you need to purchase a separate M22-15mm to 3/8” adapter for the hose to be compatible with the M22-15mm outlet of the VE52/56.

    What is the warranty policy and do I need to register my Active Premium
    Accessory Bundle?

    This hose reel and wall mount combo comes with a 2-year warranty and does require warranty registration. Ensure you have your purchase proof, purchase store, order ID for warranty support.

    What steps do I need to follow if my Active Hose Reel and Wall Mount
    Combo is not working as intended?

    The first step to follow is to read your product manual for troubleshooting. We will soon be providing videos on product maintenance, upkeep and troubleshooting so this will be an additional resource as a troubleshooting guide. If product troubleshooting does fail, please ensure you email us at support@activeproducts.com for agent support.
